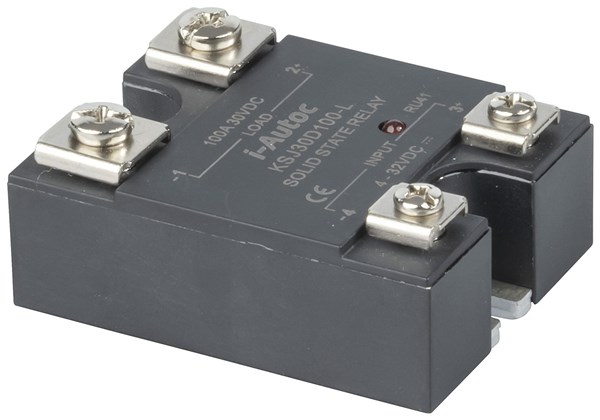

Solid State Relay 4-32VDC Input, 30VDC 100A Switching

Code: 8070075
Stock Status:
Delivery (2-5 Days)
  • This panel mount solid state relay offers 4-32VDC input control, with a switched output rated at 30VDC/ 100Amps. Note, please refer to the data sheet;...

    SY4086

    This panel mount solid state relay offers 4 -32VDC input control, with a switched output rated at 30VDC/ 100Amps. Switching high current DC loads normally requires use of a contactor to avoid arcing as the contacts try to separate. This solid state relay uses MOSFET technology to provide an economical and reliable method of switching medium to high power DC loads. This means there is no arcing and the low on-state resistance provides a viable alternative to the bulky and expensive contactors.

    Note: Inductive loads must have diode suppression (Refer data sheet wiring diagram)

    Output Circuit
    Load Voltage: 0-30VDC
    Load Current: 0.02-100A
    Max On-State Resistance: 0.007Ohms
    Max On-State Voltage Drop: 0.35V
    Max Turn On Time: 0.5ms
    Max Turn Off Time: 0.5ms
    Max Surge Current: 240A (10ms)

    Input Circuit
    Control Voltage: 4-32VDC
    Control Current: 28mA max.
    Min Turn Off Voltage: 1.0VDC
    Input Resistance: 1.2kOhm

$76.73

EACH

Add

Please note: Prices are shown including GST (where applicable) and are in AUD$
