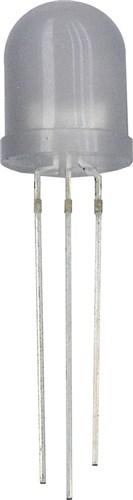

Tricolour Red/Green/Orange 10mm LED 10mcd Round Diffused

Code: 8065858
Stock Status:
Delivery (2-5 Days)
  • Red/Green Bi-colour LED with common cathode to allow tri-colour function 10mm Diameter

    ZD0256

    LED

    Specifications
    Colour: Red/Green with common cathode. Activate both colours to achieve orange
    Size: 10mm
    Lens: Diffused
    Viewing Angle: 75 degrees
     Wavelength: Red 625nm Green 570nm
    Typical Forward Current: 20mA
    Typical Forward Voltage: 2.0V
     Luminous Intensity: 10mcd
    Continuous Maximum Current: 30mA



    Resistor for 5VDC : 91.0?
    Resistor for 9VDC : 300.0?
    Resistor for 12VDC : 470.0?


    Active Component Details
    active mount type : Through Hole
    active connector type : Solder Legs
    component package : radial
    active number of legs : 3.0Count


    LED Section Details
    Colour Section : Red
    Wavelength : 625.0nm


    LED Section Details
    Colour Section : Green
    Wavelength : 570.0nm

$0.61

EACH

Add

Please note: Prices are shown including GST (where applicable) and are in AUD$
