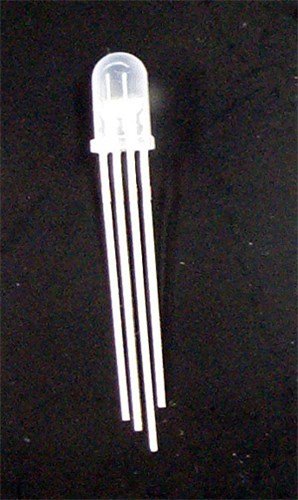

Tricolour RGB 5mm LED 600-1000mcd Round Diffused

Code: ELE/ZD0270
Stock Status:
Delivery (2-5 Days)
  • Tri-colour Red/Green/Blue LED with common cathode Illuminate all three elements to acheive any colour combination 5mm Diameter

    ZD0270

    LED

    Red, Green, Blue tri-colour LED with common cathode to allow simultaneous use of all three elements. Illuminate the elements to different levels and you can acheive almost any colour.

    Specifications:
    Colour: Red, Green, and Blue with common cathode
    Size: 5mm
    Lens: Diffused
    Viewing Angle: 45 degrees
    Wavelength: Red 625nm, Green 520nm, Blue 470nm
    Typical Forward Current: 20mA
    Typical Forward Voltage: Red 2.0V, Green/Blue 3.5V
    Luminous Intensity: Red 600mcd, Green 1000mcd, Blue 200mcd
    Continuous Maximum Current: 30mA

$2.11

EACH
