ZV1509 Voltage Regulator

The ZV1509 is a high-performance voltage regulator designed to deliver a consistent DC output voltage, unaffected by variations in load current, temperature, or AC line voltage. This regulator can employ either a straightforward feed-forward design or incorporate negative feedback mechanisms for enhanced stability.

Specifications:

• Type: 780/LM340T9
• Output Voltage (VOUT): +9V
• Output Current (IOUT): 1A

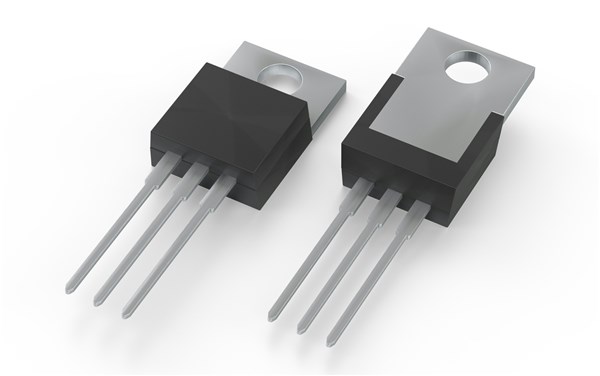

• Package Type: TO-220
