DC CONTROL BOX FOR EXTERNAL BATTERY
Code: 8203790

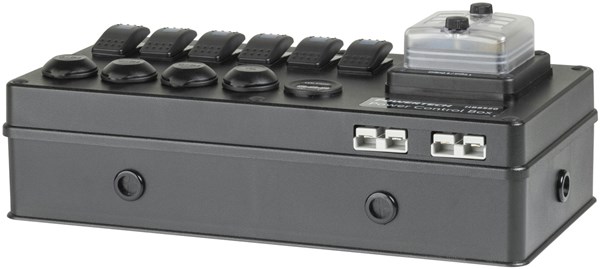

- The HB8520 DC Control Box is equipped with 2 x 50A Anderson connectors, 3 x cigarette lighter sockets, and 2 USB ports, complemented by a fuse block, switch panel, and voltage display. This Powertech Explorer Control Box is designed to meet all your 12-volt requirements within a robust plastic enclosure. Its durable yet user-friendly nylon casing allows for easy integration of additional components. The internal wiring is simplified with push-on 6mm spade connectors. The compact design measures 355x180x138mm, including the fuse block height, and can be easily mounted using the provided hardware.
Specifications:
- Wire gauges: 10AWG and 14AWG standard fittings, with options to add from our extensive range.
- Weatherproof 6-way fuse block (100A total max) with individual fuses (1 x 5A, 3 x 15A, 1 x 20A, 2 x 30A blade-type fuses).
- 3 x weatherproof 20 Amp DC cigarette-lighter type sockets.
- 6 x 20A on-off power switches with blue LED indicators (3 connections).
- Blue LED digital voltage monitor (range 6V to 30V).
- Dual port USB socket with 1A and 2.1A outputs.
- 2 x 50A high current connectors for solar and battery connections.
- 2 x 4-way internal bus bars for additional connections (150A 32V DC max).
- 6 x grommeted holes for fixed power cable entry.
