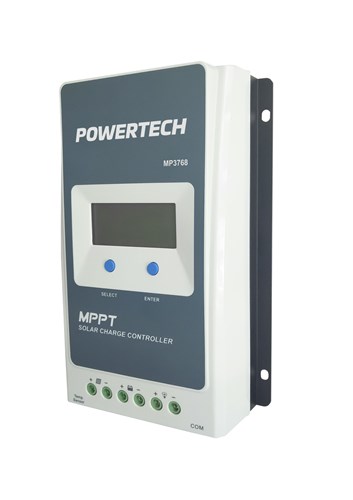

SOLAR CHG CONTLR MPPT 12/24V 30A W/LCD
Code: 8204241
- The MP3768 is a sophisticated 3-stage compact MPPT solar charge controller, designed for optimal efficiency and charge rate. It supports solar arrays up to 390W at 12V or 780W at 24VDC. This controller is compatible with lead acid (sealed, gel, or flooded) and lithium battery banks ranging from 8V to 32V. It accommodates 12V solar arrays up to 580W and 24VDC arrays up to 1170W, making it suitable for a wide range of applications. The device features bulk, constant, and float charge stages for rapid, efficient, and safe battery charging, with real-time feedback on charge status, current, and voltages displayed on an LCD screen. It is housed in a durable case for permanent installation, equipped with heavy-duty screw terminals for cabling up to 8AWG.
Note: The maximum charge output is limited to 30A if the solar panel input exceeds 390W on 12V or 780W on 24V systems.
Features:
- Advanced MPPT control technology
- High tracking and conversion efficiency
- Supports sealed, gel, or flooded lead acid and lithium batteries
- 3-stage intelligent charging
- Multiple load work modes
- Extensive electronic protection
- Backlit LCD display
- RS485 communication
- Common negative grounding
Specifications:
- Compatible Battery Bank Voltages: 12/24VDC Selectable
- Solar Input Voltage: 16 - 100VDC
- Maximum Solar Array Size: 580W/12VDC, 1170W/24VDC
- Maximum Charge Output: 30A
- Maximum Load Current: 30A
- Dimensions: 228(H) x 164(W) x 55(D)mm, 1.26kg
Battery Support:
- Sealed, gel, or flooded lead-acid (8~17V/12V; 18~32V/24V)
- LiFePO? (12V/24V)
- LiNiCoMnO? (12V/24V)
