3405MM SOLAR ECOTECH RAIL

Code: 8203967
Stock Status: Contact Us

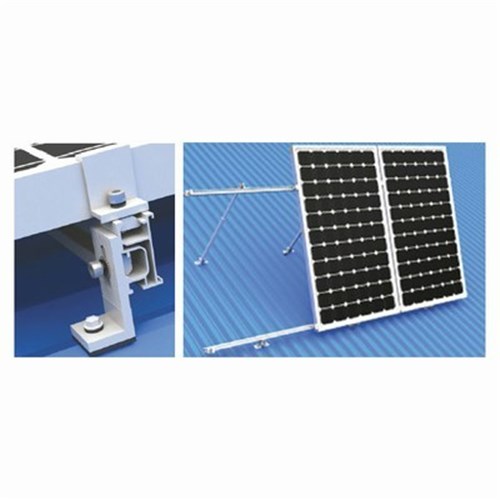

  • Introducing the HS8801, a universal and code-compliant solar panel mounting system designed for seamless installation on both tiled and tin roofs. This system accommodates roof slopes from 0 to 60 degrees and is fully cyclone-rated for Wind Region D. The innovative easy insertion modules allow for precise placement without the need to slide attachments along the rail. Compatible with 35mm thick modules, a comprehensive range of components is available.

    **Key Features:**
    - Cyclone-proof for Wind Region D (strict adherence to installation guide required)
    - Supports vertical or horizontal panel mounting
    - Compatible with any solar panel width, optimized for 800-825mm
    - Suitable for aluminum-framed panels
    - 10-year materials warranty
    - AS/NZS 1170 approved
    - Roof slope capability: up to 60 degrees
    - Wind load capacity: 80m/s
    - Snow load capacity: 1.4kNm²

    **Rails:**
    - Sold individually; two rails required per row of solar panels
    - 2560mm Rail for 3x 800-825mm width panels in portrait layout, HS-8800
    - 3405mm Rail for 4x 800-825mm width panels in portrait layout, HS-8801
    - 4200mm Rail for 5x 800-810mm width panels in portrait layout, HS-8802

    **Accessories:**
    - Rail Splice, HS-8803: Sold individually, required to join two rail lengths
    - End Clamps, 35mm, HS-8804: Sold individually, secures end solar panels to rails
    - Mid Clamp, 35mm, HS-8805: Sold individually, secures adjacent solar panels
    - Tile Roof Hook, HS-8806: Sold individually, attaches rail to building frame under tiled roof
    - Tin Roof Hook, HS-8807: Sold individually, attaches rail to building frame under tin roof

    **Adjustable Tilt Legs:**
    - Sold individually, essential for flat roof installations to achieve correct panel angle
    - Each back leg requires a matching front leg
    - Adjustable Tilt Front Leg, HS-8810
    - Adjustable Tilt Back Leg 10-15 degrees, HS-8811
    - Adjustable Tilt Back Leg 15-30 degrees, HS-8812
    - Adjustable Tilt Back Leg 30-60 degrees, HS-8813

    This comprehensive system ensures optimal performance and durability for solar panel installations, enhancing energy efficiency and sustainability.

$59.95

EACH

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
