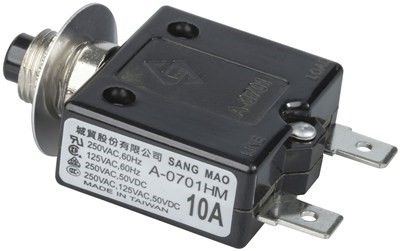

C/B 10A 50VDC/250VAC
Code: 8205752
The SF2258 is a robust, versatile panel mount circuit breaker suitable for both AC and DC circuits, with a 10-amp rating.
**Tripping Times:**
- % of Rating
- Time to Trip
-
- -------------
- ------------------
-
- 100%
- Indefinite
-
- 150%
- <1 Hour
-
- 200%
- 4.0 - 30.0s
-
- 300%
- 2.5 - 11.0s
-
- 400%
- 1.6 - 7.0s
-
- 500%
- 0.8 - 2.5s
-
- 600%
- 0.6 - 1.7s
-
**Typical Derating Factors:**
The rating will adjust by the approximate percentage indicated in the table below:
- TEMP °C
- 10-25A
- 3-5A
-
- ---------
- --------
- -------
-
- 60
- 50%
-
-
- 50
- 60%
-
-
- 40
- 72%
- 45%
-
- 30
- 85%
- 70%
-
- 25
- 100%
- 100%
-
- 20
- 110%
- 120%
-
- 10
- 125%
- 145%
-
