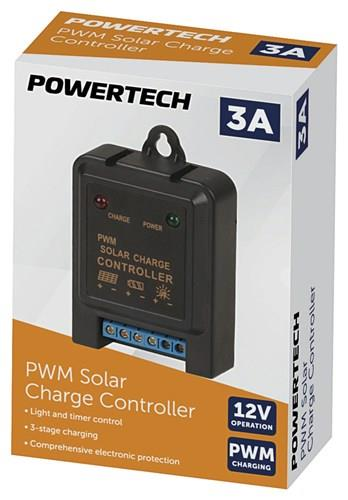

MINIATURE 12V 3A PWM SOLAR CHARGE CONTROLLER
Code: 8204239
- The MP3762 is a compact PWM solar charge controller ideal for small solar applications, including electric fences and trickle charging systems. It features a 1-year warranty and utilizes Pulse Width Modulation (PWM) to efficiently manage battery charging from solar panels. The controller offers light and timer control, akin to street lighting, and supports three charging states: bulk, equalize, and float charging. It ensures safety with protections against overcharge, over-discharge, over-current, short-circuit, and reverse-polarity.
**Features:**
- Red charge LED indicator
- Green power LED indicator
- Hang hook
- Automatic battery voltage identification
- PWM charging mode
- Comprehensive electronic protection
**Specifications:**
- Rated Voltage: 12V
- Strong Charging Pressure: 14.8V
- Equilibrium Charging: 14.5V
- Float Charging Pressure: 13.7V
- Under Voltage: 10.8V
- Under Recover Voltage: 13V
- Non-Load Current: 6mA
- Charging Circuit Voltage Drop: 0.2V
- Discharge Circuit Voltage Drop: 0.1V
