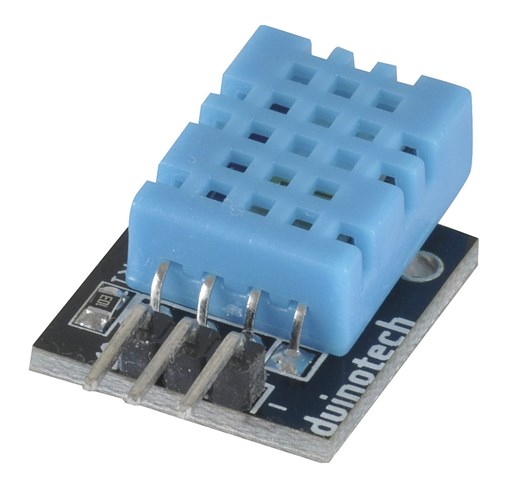

XC4520 Temperature and Humidity Sensor Module

Arduino Compatible

The XC4520 module offers precise temperature and humidity measurement, operating fully digitally to eliminate the need for analogue-to-digital calibration. It features a resistive-type humidity sensor.

Key Features:

    Compatible with Arduino library.
    Utilizes 1-Wire protocol (not Dallas 1-Wire; requires one data pin per sensor).
    Temperature Range: 0°C to 50°C with an accuracy of +/- 2°C.
    Humidity Range: 20% to 80% with an accuracy of +/- 5%.
    Sampling Rate: 1Hz.
