MOTOR 6VDC 80G/CM 9000RPM

Code: 8206564
Stock Status: Contact Us

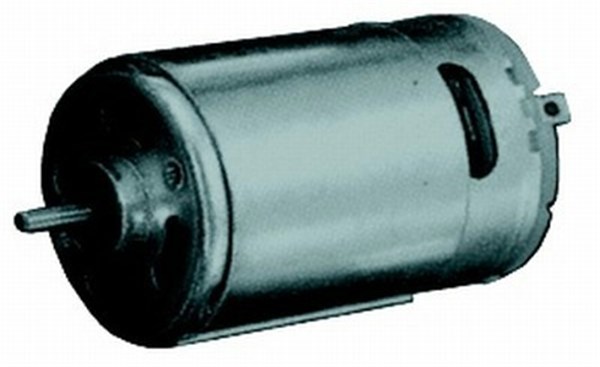

  • The YM2712 motor is a premium product featuring a hardened drive shaft, sintered bearings, and high-quality commutator brushes. It is designed for applications requiring a compact, high-torque, and reliable motor.

    **Specifications:**

    **No Load:**
    - Speed: 13,500 RPM
    - Current: 0.55 AMP

    **At Stall:**
    - Torque: 191 G.CM
    - Current: 5.6 AMP

    **At Maximum Efficiency:**
    - Efficiency: 49.6%
    - Power: 5.96 W
    - Speed: 9,679 RPM
    - Torque: 60 G.CM
    - Current: 2 AMP

    **At Maximum Power:**
    - Output: 6.44 W
    - Speed: 7,845 RPM
    - Torque: 80 G.CM
    - Current: 2.6 AMP

    **Dimensions:**
    - Diameter: 27.6 mm
    - Total Length: 51 mm
    - Shaft Length: 12.5 mm
    - Shaft Diameter: 2.3 mm
    - Mounting Thread Diameter: 2.6 mm

    The YM2712 motor comes with a 1-year warranty, ensuring quality and reliability for your projects.

$8.45

EACH

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
