POT PCB LIN DG 24MM B25K STD IMP SHAFT
Code: 8205212

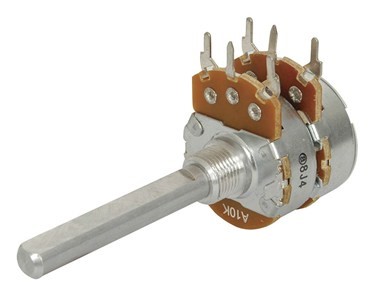

- The RP3708 potentiometer features an imperial standard shaft and bushings, crafted to our stringent engineering specifications. These full-size potentiometers have a 24mm diameter and a maximum power rating of 0.5W. The 6.35mm (1/4 inch) shafts are precision-machined with a flat surface, covering 25% of the diameter, to accommodate grubscrews or interference fit knob mounting. The shaft extends to a substantial 38mm length. The bush is a 3/8 32 T.H.D. type, ensuring secure panel attachment. Notably, these potentiometers are designed for PCB mounting, with phenolic-mounted pins and an offset center pin for stability. When soldered onto a PCB, the unit remains securely in place. Double gang pots are supported at six points, eliminating the need for additional mechanical support. The pins are sufficiently large to accommodate screened cable termination for hard wiring applications. An engineering drawing is available for reference, facilitating PCB artwork design, as this design is standardized. Value: 25K.
