POT PCB LIN DG 24MM B50K STD IMP SHAFT
Code: 8205213

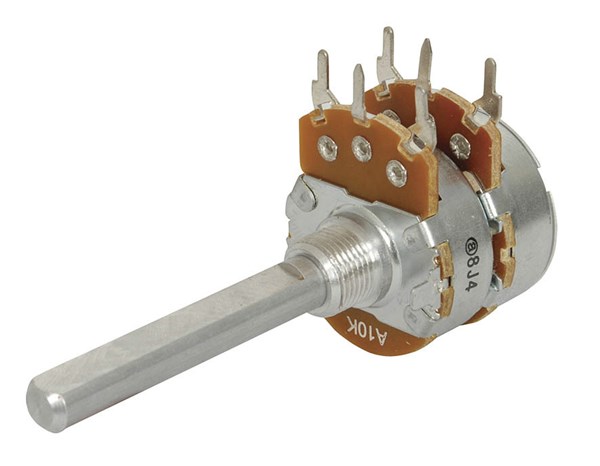

- The RP3710 potentiometer features an imperial standard shaft and bushings, engineered to precise specifications. These full-size potentiometers have a 24mm diameter and a maximum power rating of 0.5W. The 6.35mm (1/4 inch) shafts are machined flat on 25% of the diameter, facilitating secure grubscrew or interference fit knob mounting. The shaft length is 38mm, and the bush is a 3/8 32 T.H.D. type, ensuring robust panel attachment. Notably, these potentiometers are designed for PCB mounting, with phenolic-mounted pins and an offset center pin for stability. Double gang pots are secured in six locations, eliminating the need for additional mechanical support. The pins accommodate screened cable termination for hard wiring applications. Value: 50K.
