POT PCB LIN SG 24MM B1K STD IMP SHAFT
Code: 8205199

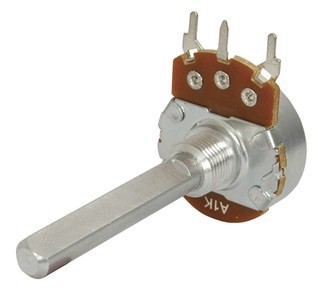

- The RP3504 potentiometer features an imperial standard shaft and bushings, engineered to precise specifications. These full-size potentiometers have a 24mm diameter and a maximum power rating of 0.5W. The 6.35mm (1/4 inch) shafts are machined flat on 25% of the diameter, facilitating secure mounting with grubscrews or interference fit knobs. The shaft length is 38mm, and the bush is a 3/8 32 T.H.D. type, ensuring robust panel attachment. Notably, these potentiometers are designed for PCB mounting, with phenolic-mounted pins and an offset center pin for stability. Double gang pots are secured in six locations, eliminating the need for additional mechanical support. The pins accommodate screened cable termination for hard wiring applications. An engineering drawing is available for PCB artwork design, standardized for consistency. Value: 1K.
Please note: Prices are shown including GST (where applicable) and are in AUD$
