POT PCB LIN SG 24MM B1M STD IMP SHAFT
Code: 8205207

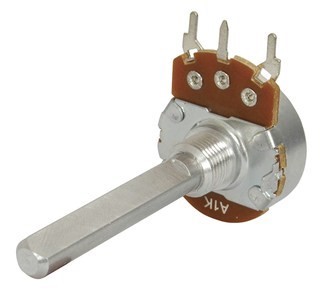

- The RP3524 potentiometer features an imperial standard shaft and bushings, crafted to our stringent engineering specifications. These full-size potentiometers have a 24mm diameter and a maximum power rating of 0.5W. The 6.35mm (1/4 inch) shafts are precision-machined with a flat surface, covering 25% of the diameter, to accommodate grubscrews or interference fit knob mounting. The shaft extends to a substantial 38mm length. The bush is a 3/8 32 T.H.D. type, ensuring secure panel attachment. Notably, these potentiometers are designed for PCB mounting, with phenolic-mounted pins and an offset center pin for stability. Double gangpots are secured in six locations, eliminating the need for additional mechanical support. The pins are sufficiently large to accommodate screened cable termination for hard wiring applications. An engineering drawing is available for designing PCB artwork, as this design is standardized. The potentiometer is available in a 1M value.
