POT PCB LIN SG 24MM B50K STD IMP SHAFT
Code: 8205203

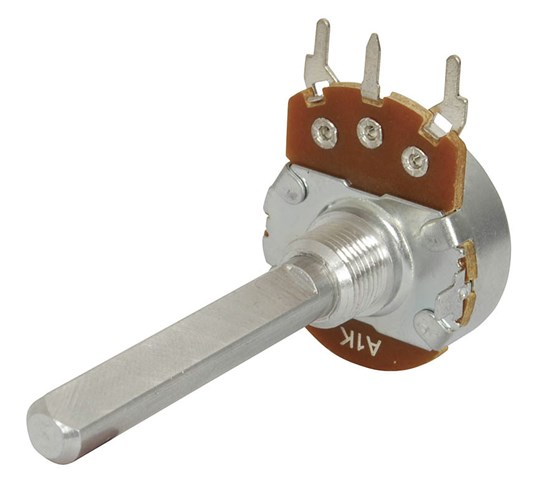

- The RP3516 potentiometer features an imperial standard shaft and bushings, engineered to precise specifications. These full-size potentiometers have a 24mm diameter and a maximum power rating of 0.5W. The 6.35mm (1/4 inch) shafts are machined flat on 25% of the diameter, facilitating grubscrew or interference fit knob mounting. The shaft length is 38mm, and the bush is a 3/8 32 T.H.D. type, ensuring secure panel attachment. Notably, these potentiometers are designed for PCB mounting, with phenolic-mounted pins and an offset center pin for stability. Double gang pots are supported in six locations, eliminating the need for additional mechanical support. The pins accommodate screened cable termination for hard wiring applications. An engineering drawing is available for PCB artwork design, standardized for consistency. The potentiometer value is 50K.
Please note: Prices are shown including GST (where applicable) and are in AUD$
