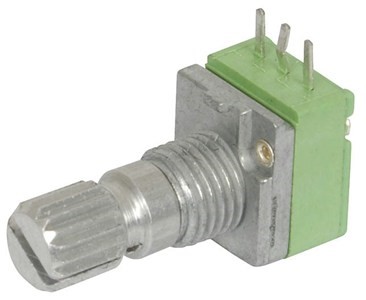

POT PCB LIN SG 9MM B10K MET SPLINE/18TH
Code: 8205230
The RP8510 series is setting the benchmark in the industry for miniaturized audio, digital, and telecommunications equipment. Key features include:
- Rated Power: 0.05W
- Rated Voltage: 50VAC
- Slider Noise: <100mV
- Insulation Resistance: >100M at 250VDC
- Dielectric Strength: 300VAC/Minute
- Tracking Error: Within 3dB at 40~0dB
- Mechanical Rotation Angle: 300° ± 5°
- Rotation Torque: 20~250gf.cm
- Shaft Stop Strength: 5kgf.cm/min
- Resistance Value: 10K
This series is engineered for superior performance and reliability, making it an ideal choice for advanced electronic applications.
