POT PCB LIN SG 9MM B1K MET SPLINE/18TH
Code: 8205229 Brand: Unknown

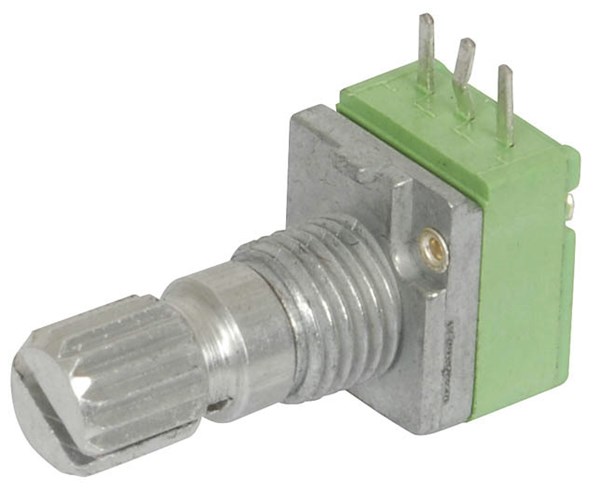

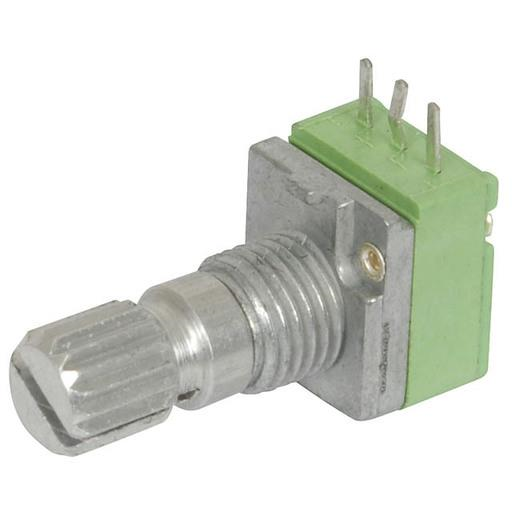

The RP8504 is a rotary potentiometer with a rated power of 0.05W and a rated voltage of 50VAC. It has a slider noise of less than 100mV and an insulation resistance of over 100M at 250VDC. The dielectric is 300VAC per minute and the tracking error is within 3dB at 40~0dB. It has a mechanical rotation angle of 300; +/- 5; and a rotation torque of 20~250gf.cm with a shaft stop strength of 5kgf.cm/min. The value is 1K.
