POT PCB LOG SG 24MM A100K STD IMP SHAFT
Code: 8205210

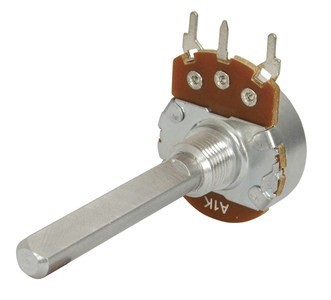

- The RP3618 potentiometer features an imperial standard shaft and bushings, engineered to precise specifications. It is a full-size 24mm diameter type with a maximum power rating of 0.5W. The unit includes a 6.35mm (1/4 inch) shaft, machined flat on 25% of its diameter for secure grubscrew or interference fit knob mounting. The shaft extends to a length of 38mm, and the bush is a 3/8 32 T.H.D. type, ensuring robust panel attachment. Notably, the potentiometer is designed for PCB mounting, with phenolic-mounted pins and an offset center pin for stability. Double gang pots are secured in six locations, eliminating the need for additional mechanical support. The pins are sufficiently large to accommodate screened cable termination, facilitating hard wiring when necessary. The potentiometer is available in a 100K value.
Please note: Prices are shown including GST (where applicable) and are in AUD$
