POT PCB LOG SG 24MM A10K STD IMP SHAFT
Code: 8205209

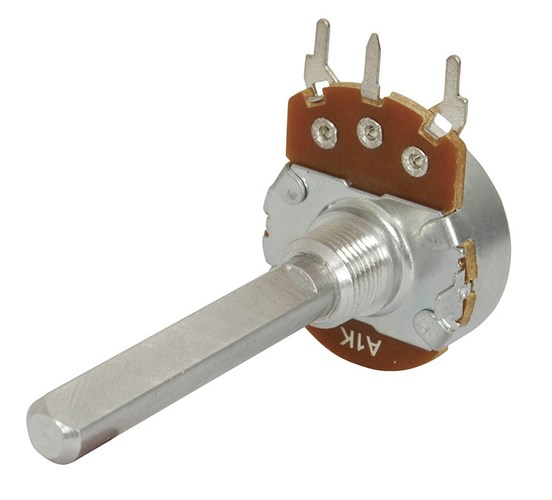

- The RP3610 potentiometer features an imperial standard shaft and bushings, engineered to precise specifications. These full-size potentiometers have a 24mm diameter and a maximum power rating of 0.5W. The 6.35mm (1/4 inch) shafts are machined flat on 25% of the diameter, facilitating secure mounting with grubscrews or interference fit knobs. The shaft length is 38mm, and the bush is a 3/8 32 T.H.D. type, ensuring robust panel attachment. Notably, the potentiometers offer PCB mount capability, with phenolic-mounted pins and an offset center pin for stability. Double gangpots are secured in six locations, eliminating the need for additional mechanical support. The pins are sufficiently large to accommodate screened cable for hard wiring applications. Available in a 10K value.
Please note: Prices are shown including GST (where applicable) and are in AUD$
