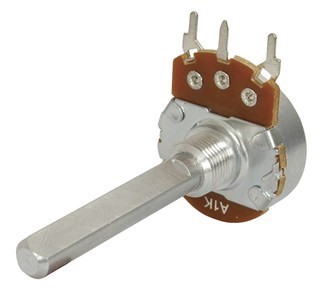

POT PCB LOG SG 24MM A1K IMP SHAFT
Code: 8205208
- The RP3604 potentiometers feature an imperial standard shaft and bushings, engineered to precise specifications. These full-size, 24mm diameter potentiometers have a maximum power rating of 0.5W. They include authentic 6.35mm (1/4 inch) shafts, with a flat machined 25% of the diameter for secure grubscrew or interference fit knob mounting. The shaft measures a substantial 38mm in length. The bush is a 3/8 32 T.H.D. type, ensuring robust panel attachment. Notably, these potentiometers offer PCB mount capability, with pins mounted on phenolic and the center pin offset from the outer terminals, providing stability when soldered. Double gang pots are secured in six locations, eliminating the need for additional mechanical support. The pins are sufficiently large to accommodate screened cable termination, facilitating hard wiring when necessary. Value: 1K.
