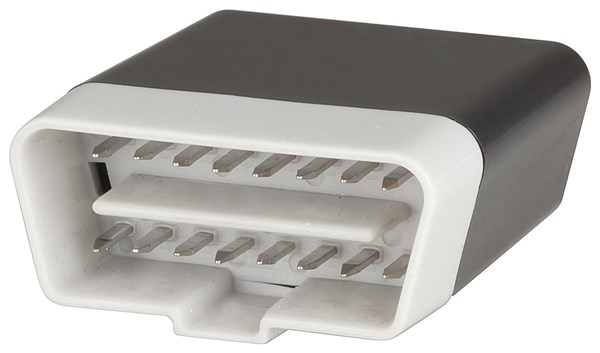

READER OBD2 BLUETOOTH 4.0 ENGINE CODE
Code: 8204655
- Modern automotive engines are managed by sophisticated computer systems that optimize engine performance. These systems are integrated with sensors attached to key components, continuously transmitting data to the computer, which then adjusts performance to ensure minimal emissions and optimal efficiency. Accessing this data allows mechanics to accurately diagnose performance issues. The OBD2 Bluetooth engine code reader facilitates this process by connecting to your vehicle's OBD2 port, instantly interpreting data from the engine control unit (ECU). This tool enables users to identify faulty sensors, detect cylinder misfires, monitor engine coolant temperature, and observe engine RPMs, among other functions.
Self-diagnosing and addressing certain issues can result in significant time and cost savings. Additionally, it provides insight into the extensive engine data available in modern vehicles.
Instructions for Use:
1. Connect the device to the OBD2 port, typically located beneath the steering wheel.
2. Pair the device with a smartphone, laptop, or tablet (Note: Not compatible with iOS devices).
3. Utilize the provided software or app to monitor various engine parameters.
Available Parameters:
- Vehicle Speed
- RPM
- Fuel Consumption
- Engine Coolant Temperature
- Fuel Pressure
- Calculated Engine Load
- Throttle Position
- Intake Manifold Pressure
- Air Intake Temperature
- Timing Advance
- Mass Air Flow
- Fuel Level
- Barometric Pressure
- EVAP System Vapor Pressure
- Fuel Trim
*Note: Availability of measurements may vary by vehicle.
Recommended iOS Apps:
- Mini OBD II
Recommended Google Play Store Apps:
- Torque Lite (OBD2 & Car)
- Torque Pro (OBD2 & Car)
**Disclaimer: These applications are not developed by the manufacturer or Electus Distribution Pty. Ltd. Customers are responsible for any costs or effects on their devices resulting from app usage.
Important: For vehicles manufactured by Subaru, Mitsubishi, or Land Rover, the reader must be installed prior to engine start.
Compatibility Notice: Current inventory does not support pairing with iOS devices updated to the latest version due to Bluetooth firmware compatibility issues. This does not affect Android devices.
Supported Protocols:
- SAE J1850 VPW (10.4Kbaud)
- SAE J1850 PWM (41.6Kbaud)
- ISO9141-2 (5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (fast init, 10.4Kbaud)
- ISO15765-4CAN (11bit ID, 500 Kbaud)
- ISO15765-4CAN (29bit ID, 500 Kbaud)
- ISO15765-4CAN (11bit ID, 250 Kbaud)
- ISO15765-4CAN (29bit ID, 250 Kbaud)
