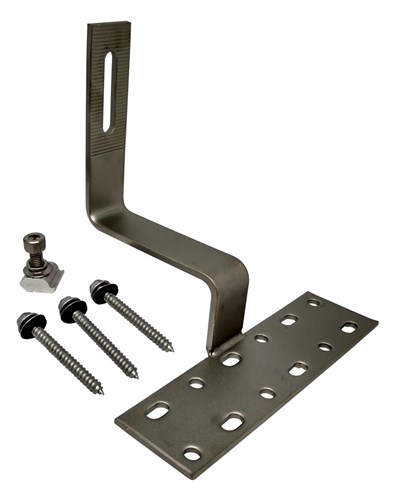

SOLAR PANEL TILE ROOF HOOK
Code: 8203971
- Introducing the HS8806, a universal and code-compliant solar panel mounting system designed for seamless installation on both tiled and tin roofs. This system accommodates roof slopes ranging from 0 to 60 degrees and is fully cyclone-rated for Wind Region D. The innovative easy insertion modules allow for precise placement without the need to slide attachments along the rail. Compatible with 35mm thick modules, a comprehensive range of components is available.
**Key Features:**
- Cyclone-proof for Wind Region D (strict adherence to installation guide required)
- Supports vertical or horizontal panel mounting
- Compatible with any solar panel width, optimized for 800-825mm
- Suitable for aluminum-framed panels
- 10-year materials warranty
- AS/NZS 1170 approved
- Roof slope capability: up to 60 degrees
- Wind load capacity: 80m/s
- Snow load capacity: 1.4kNm²
**Rails:**
- Sold individually; two rails required per row of solar panels
- 2560mm Rail for 3x 800-825mm width panels in portrait layout, HS-8800
- 3405mm Rail for 4x 800-825mm width panels in portrait layout, HS-8801
- 4200mm Rail for 5x 800-810mm width panels in portrait layout, HS-8802
**Accessories:**
- Rail Splice, HS-8803: Sold individually, necessary for joining two rail lengths
- End Clamps, 35mm, HS-8804: Sold individually, secures the outer edges of end solar panels to the rails
- Mid Clamp, 35mm, HS-8805: Sold individually, secures the edges of two adjacent solar panels
- Tile Roof Hook, HS-8806: Sold individually, attaches the rail to the building frame under a tiled roof
- Tin Roof Hook, HS-8807: Sold individually, attaches the rail to the building frame under a tin roof
**Adjustable Tilt Legs:**
- Sold individually, essential for mounting on flat roofs to achieve the correct panel angle
- Each back leg requires a matching front leg
- Adjustable Tilt Front Leg, HS-8810
- Adjustable Tilt Back Leg 10-15 degrees, HS-8811
- Adjustable Tilt Back Leg 15-30 degrees, HS-8812
- Adjustable Tilt Back Leg 30-60 degrees, HS-8813
This comprehensive system ensures optimal performance and durability for solar panel installations, meeting the highest industry standards.
