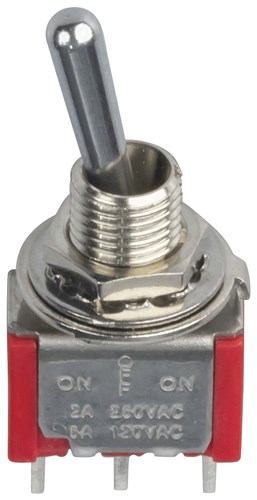

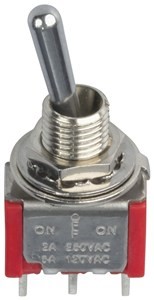

SWITCH TGL MINI CTR-OFF SPDT SOLDER TAG

Code: 8205920
Stock Status: In Stock
  • Explore our diverse selection of switches, designed to meet your specific requirements.

    **ST0336 Features:**

    - **Solder Tag with Threaded Bush:** Includes brackets indicating switch position (Centre Off: on - off - on).
    - **Operating Temperature:** Ranges from -30°C to +85°C.
    - **Contact Rating (Resistive Load):**
    - Subminiature: 1 Amp @ 250VAC, 3 Amps @ 28VDC
    - Miniature: 2 Amps @ 250VAC, 5 Amps @ 28VDC
    - **Switch Materials:**
    - **Case:** Diallyl Phthalate (DAP) (UL94V-0)
    - **Toggle Handle:** Brass, chrome-plated
    - **Bushing:** Brass, nickel-plated
    - **Housing:** Stainless Steel
    - **Terminals:** Brass, electro-tin plated for enhanced solderability
    - **Contacts:** Silver-plated over copper alloy (standard); gold-plated over nickel-plated alloy for fixed and moving components.

$6.30

EACH

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
