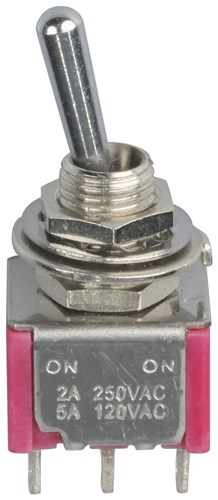

SWITCH TGL MINI DPDT SOLDER TAG
Code: 8205921 Brand: Mini
The ST0355 switch has a solder tag with threaded bush and brackets to indicate switch position (on-on). It can operate in temperatures ranging from -30 to +85 degrees Celsius. The contact rating varies based on size, with the subminiature version having a 1 Amp @ 250VAC (resistive load) rating and the miniature version having a 2 Amps @ 250VAC rating. The switch materials include Diallyl Phthalate (DAP) for the case, brass chrome plated for the toggle handle, and brass nickel-plated for the bushing. The housing is stainless steel, and the terminals are made of brass electro-tin plated for solderability. The contacts are either silver plated over copper alloy (standard) or gold plated over nickel-plated alloy.
