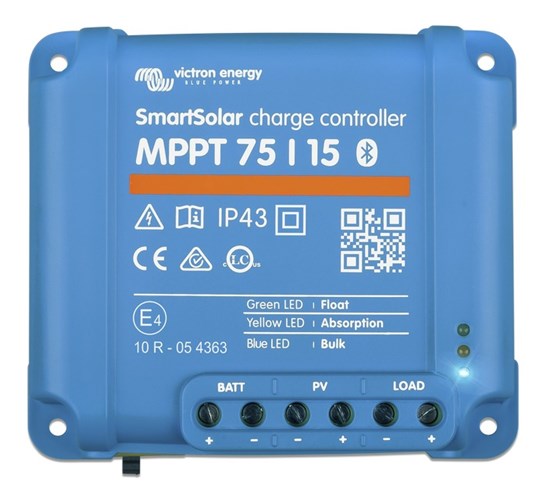

VICTRON SMARTSOLAR CHARGE CONTROLLERS MPPT 75/15 - 12/24V 15A WITH LOAD OUTPUT AND BLUETOOTH
Code: 8199908
- Victron SmartSolar Charge Controllers MPPT 75/15 - 12/24V 15A with Load Output and Bluetooth (Model MP3790) offer advanced solar charging solutions for 12V or 24V lead-acid or LiFeP04 batteries. Featuring an ultra-fast MPPT controller, these devices optimize solar panel efficiency, even in cloudy conditions, with charging currents up to 15A. The adaptive 3-stage battery charging process—comprising bulk, absorption, and float stages—ensures rapid charging and optimal battery maintenance. Users can select from eight pre-set charge algorithms or customize settings to meet specific needs. Additional features include equalization and BatteryLife modes to extend battery lifespan. The DC load output port prevents over-discharging by disconnecting devices at a set voltage. Bluetooth connectivity allows for configuration and monitoring via smartphone, tablet, or computer, providing access to real-time and historical solar and battery data. Safety measures include protection against over-current, over-temperature, over-voltage, reverse polarity, and short circuits.
**Features:**
- Compatible with Lead-acid and LiFeP04 Batteries
- Ultra-fast MPPT Controller
- Fully Programmable Battery Charge Algorithm
- Bluetooth Enabled for App Control
**Specifications:**
- Battery Voltage: 12/24V (auto-select)
- Rated Charge Current: 15A
- Nominal PV Power: 220W/12V, 440W/24V
- PV Short Circuit Current: 15A max.
- PV Open Circuit Voltage: 75V max.
- Peak Efficiency: 98%
- Charge Voltage:
- Absorption: 14.4V/28.8V (adjustable)
- Float: 13.8V/27.6V (adjustable)
- Continuous Load Current: 15A
- Low Voltage Load Disconnect: 11.1V/22.2V or 11.8V/23.6V or Battery Life Algorithm
- Low Voltage Load Reconnect: 13.1V/26.2V or 14V/28V or Battery Life Algorithm
- Screw Terminals: 6mm² (AWG10)
